PQWT-TCM Series 150m 300m 500m Water Well Logging Equipment with 33 Frequency Multi-Frequency and LCD Touch Screen Display

PQWT-TCM Series 150m 300m 500m Water Well Logging Equipment with 33 Frequency Multi-Frequency and LCD Touch Screen Display
PQWT-TCM Series 150m 300m 500m Water Well Logging Equipment with 33 Frequency Multi-Frequency and LCD Touch Screen Display PQWT-TCM Series 150m 300m 500m Water Well Logging Equipment with 33 Frequency Multi-Frequency and LCD Touch Screen Display PQWT-TCM Series 150m 300m 500m Water Well Logging Equipment with 33 Frequency Multi-Frequency and LCD Touch Screen Display PQWT-TCM Series 150m 300m 500m Water Well Logging Equipment with 33 Frequency Multi-Frequency and LCD Touch Screen Display PQWT-TCM Series 150m 300m 500m Water Well Logging Equipment with 33 Frequency Multi-Frequency and LCD Touch Screen Display PQWT-TCM Series 150m 300m 500m Water Well Logging Equipment with 33 Frequency Multi-Frequency and LCD Touch Screen Display

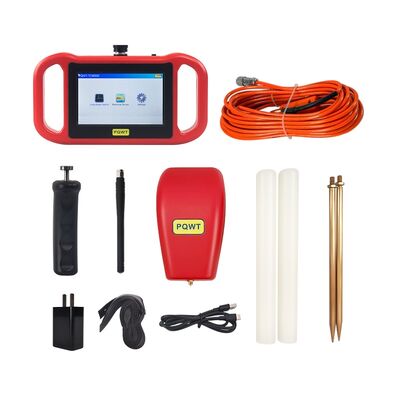

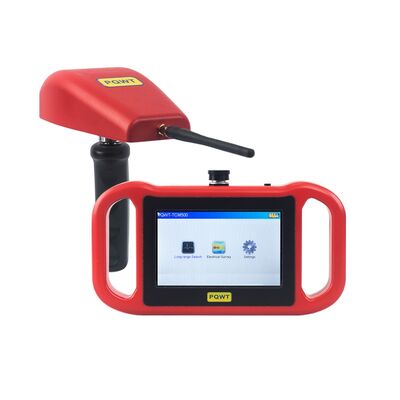

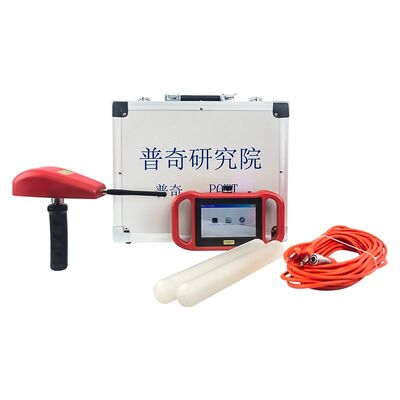

Hình ảnh lớn :  PQWT-TCM Series 150m 300m 500m Water Well Logging Equipment with 33 Frequency Multi-Frequency and LCD Touch Screen Display

Thông tin chi tiết sản phẩm:
Nguồn gốc: Hồ Nam, Trung Quốc
Hàng hiệu: PQWT
Số mô hình: PQWT-TCM150/TCM300/TCM500
Thanh toán:
Số lượng đặt hàng tối thiểu: 1
Tiếp xúc

PQWT-TCM Series 150m 300m 500m Water Well Logging Equipment with 33 Frequency Multi-Frequency and LCD Touch Screen Display

Sự miêu tả
Tần số hoạt động: Nhiều tần số Nguồn điện: Pin lithium có thể sạc lại
Loại hiển thị: Màn hình cảm ứng LCD Nhiệt độ hoạt động: -20~+50℃
Chế độ hoạt động: Tìm kiếm tầm xa, Chế độ lập bản đồ tự động Phạm vi đo: Thay đổi phạm vi tự động 0-2500mV
Đếm tần số: 33 Tần số Phạm vi tìm kiếm bề mặt: 1500m
Độ sâu phát hiện: 150m/300m/500m Kênh: 4/6/8 kênh
nghị quyết: 0,001mV Số điện cực: 2 CÁI
Kích thước hiển thị: Màn hình LCD 5.0 ​​inch HD Lưu trữ dữ liệu: 999 tuyến khảo sát
Chế độ tìm kiếm: Chế độ kép
Làm nổi bật:

150m/300m/500m Detection Depth Water Well Logging Equipment

,

33 Frequency Multi-Frequency Long Range Water Detector

,

LCD Touch Screen Display Underground Water Detector

PQWT-TCM Series Water Well Logging Equipment
Advanced long-range underground water detector with detection depths of 150m, 300m, and 500m for professional geological exploration.
Customer Feedback
WAIT FOR YOUR SHARING!
PQWT-TCM Series 150m 300m 500m Water Well Logging Equipment with 33 Frequency Multi-Frequency and LCD Touch Screen Display 0
Product Overview
PQWT-TCM Series Geophysical Water Survey Detector utilizes natural electric field sources as its working principle. The system operates based on resistivity contrast between underground rocks, minerals, and groundwater aquifers.
By measuring natural electric field components from the earth surface to horizontal axis X and subsurface vertical axis Z across multiple frequencies, the instrument analyzes variations in magnetic energy to detect geological anomalies. This electrical prospecting method measures electrical field components and electromagnetic energy variations to solve geological challenges.
The collected data is automatically processed through the instrument's unique built-in calculation function and presented as curves and profiles. These visual representations clearly display surface to subsurface formation structures and characteristics, enabling quick identification of faults, contacts, fractures, linear structures, joints, cavities, and aquifers.
Key Features
√ Dual Mode Operation: Long-range search and natural electric field frequency survey capabilities
√ Dynamic Display: Real-time data collection and immediate result display on the host machine
√ Automatic Mapping: One-key automatic generation of curve maps and profile maps
√ Extensive Data Storage: Capacity to store geological curve maps and profile maps for over 999 survey lines
√ Report Generation: Convenient data management for comprehensive exploration report creation
PQWT-TCM Series 150m 300m 500m Water Well Logging Equipment with 33 Frequency Multi-Frequency and LCD Touch Screen Display 1 PQWT-TCM Series 150m 300m 500m Water Well Logging Equipment with 33 Frequency Multi-Frequency and LCD Touch Screen Display 2 PQWT-TCM Series 150m 300m 500m Water Well Logging Equipment with 33 Frequency Multi-Frequency and LCD Touch Screen Display 3 PQWT-TCM Series 150m 300m 500m Water Well Logging Equipment with 33 Frequency Multi-Frequency and LCD Touch Screen Display 4 PQWT-TCM Series 150m 300m 500m Water Well Logging Equipment with 33 Frequency Multi-Frequency and LCD Touch Screen Display 5 PQWT-TCM Series 150m 300m 500m Water Well Logging Equipment with 33 Frequency Multi-Frequency and LCD Touch Screen Display 6
Technical Specifications
Warranty 2 years
Type PQWT-TCM Underground Water Detector
Customized Support OEM
Place of Origin China
Brand Name PQWT
Model Number PQWT-TCM150/TCM300/TCM500
Product Name PQWT-TCM Long Range Water Detector
Detection Depth 150m/300m/500m
Channels 4/6/8 channels
Resolution 0.001mV
Electrode 2 pieces
Application Underground Water Detection
Usage Borehole Drilling, Water Supply, Farm Irrigation
Power Supply Rechargeable Lithium Battery
Display 5.0 inch HD LCD
Packing & Delivery
PQWT-TCM Series 150m 300m 500m Water Well Logging Equipment with 33 Frequency Multi-Frequency and LCD Touch Screen Display 7 PQWT-TCM Series 150m 300m 500m Water Well Logging Equipment with 33 Frequency Multi-Frequency and LCD Touch Screen Display 8 PQWT-TCM Series 150m 300m 500m Water Well Logging Equipment with 33 Frequency Multi-Frequency and LCD Touch Screen Display 9

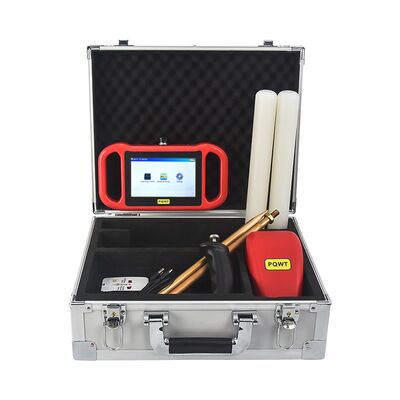

Packaging: Aluminum specialized flight case + strong carton + corner guard
Customization: We welcome custom packaging and logo requests. Please share your ideas with us!
Company Profile
Hunan Puqi Geologic Exploration Equipment Institute is a leading professional institution in China specializing in the research, development, manufacturing, and sales of advanced geological exploration equipment.
Our comprehensive product portfolio includes pipe water leak detectors, leakage automatic analyzers, geophysical prospecting underground water detectors, cavity detectors, mine locators, dam piping detectors, borehole inspection cameras, and pipeline detectors.
With over 200 staff members, including 16 senior engineers and 49 intermediate engineers, Puqi maintains a strong focus on hydrogeological exploration, intelligent data-capture technology, and specialized technical applications.
We have successfully completed more than 65 major projects, including national ministries initiatives, Sino-foreign cooperation programs, and significant scientific research endeavors. Our achievements include numerous national research awards and over 117 national patents.
Puqi has established long-term cooperative relationships with scientific research institutes in Germany, US, Australia, Hong Kong, and other countries. We operate multiple geological data laboratories across China, utilizing proprietary software for long-term data collection, analysis, and detection across diverse geological structures, establishing comprehensive differential databases for various geological areas.
PQWT-TCM Series 150m 300m 500m Water Well Logging Equipment with 33 Frequency Multi-Frequency and LCD Touch Screen Display 10 PQWT-TCM Series 150m 300m 500m Water Well Logging Equipment with 33 Frequency Multi-Frequency and LCD Touch Screen Display 11
Frequently Asked Questions
Q1: What payment method do you support?
A: We support Wire Transfer, Western Union, PayPal and Alibaba order.
Q2: What shipment way do you use and how is the delivery time?
A: We use DHL/FedEx/UPS/TNT/EMS Air Express and Sea shipping. Delivery time is within 7 working days for in stock items.
Q3: Guide for After-sale Service.
A: 2 years guarantee for product and maintenance of core components. For more details please contact our online sales.
Q4: I have other questions to consult.
A: Please contact our online sales by clicking Chat Now or Send Inquiry. Your question will receive prompt attention and reply!
PQWT-TCM Series 150m 300m 500m Water Well Logging Equipment with 33 Frequency Multi-Frequency and LCD Touch Screen Display 12
